We are the center distributor for Denso bus air conditioning system in Malaysia
our Scope of supply:
- Denso VAC system
- Denso components
© 2020 Perkasa Tech Engineering Sdn Bhd - All Rights Reserved
CONTACT US
Although we do our best to reply to your inquiries, we
cannot guarantee a rapid response or a reply in all
cases. Also, our reply may be by e-mail, telephone, or
facsimile.
Thank you for your understanding in advance.
Tel: 012-7170121
Email: perkasatech19@gmail.com
ADDRESS: No.17, Jln PJS 7/21,Bandar Sunway,46150
Petaling JayaSelangor, Darul Ehsan.
OUR PRODUCTS
Denso components
•
High Performance
•
Wide & Slim Design
•
Environment Friendly

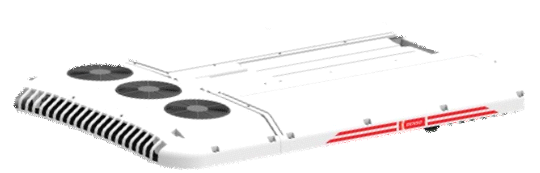

LD9 - For Large Bus
sPECIFICATION
ROOF UNIT
MAX. COOLING CAPICITY
MAX. AIR FLOW VOLUME
WEIGHT (APPROXIMATE)
SIZE
ELECTRIC POWER CONSUMPTION
38 Kw: 32,700 kcal/hr; 130,000 BTU/hr
6,600 m
3
/h (Free Flow)
155 kg
2900mm (L) x 2000mm (W)
72.5 A (at 24v)
compressor
model
displacement
compressor oil type
6C620
611 cc
ND-Oil 8
10P30 (2 units)
300 cc/unit
ND-Oil 8
condenser
type
ALL ALUMINUM MULTI-FLOW TYPE
“compressor FAN & MOTOR”
FAN
MOTOR
NO. OF UNITS
POWER CONSUMPTION.
PROPELLER FAN TYPE
BRUSHLESS MOTOR
3 pcs
600 watt (200 watt x3)
EVAPORATOR
type
COPPER TUBE & ALUMINUM PLATE FIN TYPE
“EVAPORATOR FAN & MOTOR”
FAN
MOTOR
NO. OF UNITS
POWER CONSUMPTION.
SIROCCO FAN TYPE
BRUSHLESS MOTOR
6 pcs
1,140 watt (190 watt x6)
EXPANSION VALVE
type
EXTERNAL EQUALIZER TYPE
DRYER
CONTENTS
ZEOLITE (FF TYPE) x2
RECEIVER TANK
type
HORIZONTAL
PIPING
ROOF UNIT
VEHICLE.
ALUMINUM PIPES
REFRIGERANT RUBBER HOSES & COPPER PIPESREFRIGERANT
TYPE
AMOUNT (APPROXIMATE)
HFC 134a
4.4 kg (ONE CYCLE)
2.2 kg x 2 (TWO CYCLE)
•
High Performance
•
Compact & light Weight
•
Fuel Saving

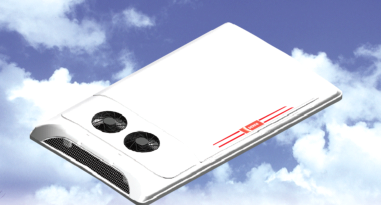

MSD8 - For Small Bus
sPECIFICATION
ROOF UNIT
MAX. COOLING CAPICITY
MAX. AIR FLOW VOLUME
WEIGHT (APPROXIMATE)
SIZE
ELECTRIC POWER CONSUMPTION
18 Kw: 15,500 kcal/hr; 61,420 BTU/hr
3,800 m
3
/h (Free Flow)
100 kg
2780mm (L) x 1495mm (W) x 229mm (H)
40A (at 24v DC)
compressor
model
displacement
compressor oil type
10P30
300 cc
ND-Oil 8
condenser
type
ALL ALUMINUM MULTI-FLOW TYPE
“compressor FAN & MOTOR”
FAN
MOTOR
NO. OF UNITS
POWER CONSUMPTION.
PROPELLER FAN TYPE
FERRITE MOTOR (DENSO 112F)
2 pcs
280 watt (140 watt x2)
EVAPORATOR
type
COPPER TUBE & ALUMINUM PLATE FIN TYPE
“EVAPORATOR FAN & MOTOR”
FAN
MOTOR
NO. OF UNITS
POWER CONSUMPTION.
SIROCCO FAN TYPE
FERRITE MOTOR (DENSO T86F)
4 pcs
680 watt (170 watt x4)
EXPANSION VALVE
type
EXTERNAL EQUALIZER TYPE, 2pcs
DRYER & RECEIVER TANK
CONTENTS
ZEOLITE
PIPING
TYPE
REFRIGERANT RUBBER HOSES & COPPER PIPES
REFRIGERANT
TYPE
R134a
